LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

Product Categories
GUANGZHOU TIANXIN PHOTOELECTRIC CO., LTD
Contact Now

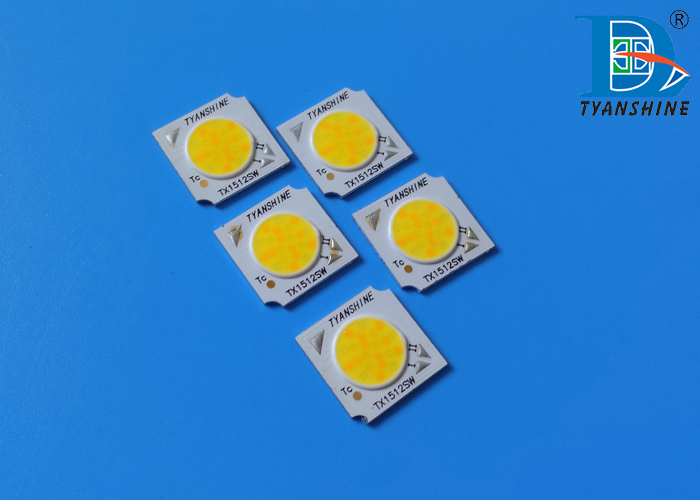

LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

Brand Name : TYANSHINE

Model Number : TX-H1512SW11A-2860V36-02H90

Certification : RoHS, LM80 (Pending)

Place of Origin : CN

MOQ : 100

Packaging Details : In plastic tray

Current : 600mA

Input Voltage : 36V

Power : 20 Watt

CCT : 2700K-6500K

Efficiency : 95-105lm/W

CRI : 90Ra

Dimension : 15.85*15.85mm

LES : Φ11mm

Contact Now

CIELM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

Features:

  • Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;

  • Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;

  • Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%

  • Compatible with the housing / reflectors and Lenses / holders of the CREE Arrays (1304-1310)(1507-1512)(1820-1830)(2530-2540)

Advantages VS Disadvantages:

TYANSHINE Tuneable White COB Other Brands' Tuneable COB
LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

1, Cross-distribution for the White and WarmWhite LED Dies;

2, Better performance of Color-mixing, without light strips or shadows;

3, Easy to adapt Lenses or reflectors

1, Strip arrays or Circular distribution of LED Dies;

2, Ununiformity of color-mixing, will be projected light strips or shadows;

3, Strictly requirements for Lenses/Relfectors

LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

Specification:

Item Code Color IF
(mA)		 VF
(V)

Power

(W)

 CCT (K) CRI
(Ra)		 Lumen
(lm)		 LES
(mm)
TX-H1512SW11A-2860V36-02H90 W 600 36 20 6000 90 1350 Φ11
S 600 36 20 2800 1120

(W - White, S - WarmWhite) , Ta = 25℃

Drawing of Bi-color COB LED Array:

LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

CIE BINNING: 3MacAdam Step

LM80 LED COB 2800K-6500K Tunable White 20Watt CRI 90Ra COB LED Module

Applications:

Commercial lighting:

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Hotels and Restaurants

Fashion stores, Retail stores, Shpping malls

Residential lighting

Smart lighting

TV / Film / Studio lighting

Fresnels lights
